全自動X射線工程車輪胎檢測系統

X-ray inspection system for OTR tire

系統簡介：

Brief introduction

    全自動X射線工程車輪胎檢測系統是工程車輪胎專用檢測設備。該系統由高頻高壓X射線系統、數字成像系統、機械運動系統、電氣控制系統、X射線防護系統、視頻監視系統等組成。

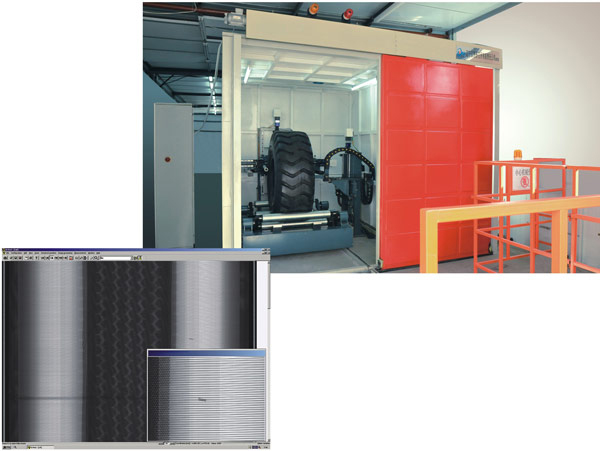

The system is designed for OTR tire. It includes high frequency and voltage X-ray system, digital imaging system, mechanical motion system, tire identifying system, control system, X-ray protection system, video monitor system and so on.

系統特點：

Characteristic

■高精密機械運動系統，使輪胎在檢測過程中具有較高的定位精度和速度控制，從而保證得到最好的圖像質量。

The tire can be controlled accurately during the inspection cycle due to the high precision motion mechanism. It can offer an excellent image.
■采用 CMOS線性探測器，動態范圍 12 bit。

CMOS detector with dynamic range 12bit
■圖像分辨率 1mm ,具有全屏滾動顯示功能。

Full-screen scrolling image with resolution 1mm

■采用移動的小車將輪胎自動送入鉛房，輪胎在小車上直接旋轉檢測的方式，從而避免了在鉛房內用吊車起吊輪胎而損傷設備和人員的風險。

The tire can be placed at its inspecting position automatically by the moving loader, which avoids the risk caused by using the hoisting machine in the lead cabin.

檢測范圍:

Inspection range

■輪胎外徑：1210-4500㎜

Outside diameter: 1210-4500mm

■輪胎內徑：24-63〞

Inside diameter: 24-63”

■斷面寬：300-1500㎜

Overall width: 300-1500mm

■輪胎重量：最大5000kg

Weight: Max. 5000kg
